ADAPTEC CARDS

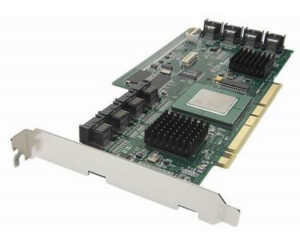

The Adaptec Serial ATA RAID 21610SA Controller is a flexible 16-port native Serial ATA I/O processor-based RAID controller that combines the high-performance storage connectivity of Serial ATA with Adaptec's advanced RAID features. Device Type: Storage controller (RAID) - plug-in card Interface Type: PCI Cache Memory: 64 Mbyte Key RAID Features: Optimized Disk Utilization, Online RAID Level Migration, Online Capacity Expansion, Background Initialization, SNMP support, Enclosure Management Ready Number of devices: Up to 16 Serial ATA drives Bus System Interface Type: 64-bit/66 MHz PCI Internal Connectors: Sixteen Serial ATA ports Data Transfer Rate: Up to 1.5 Gbits/sec System Requirements: Available PCI slot meeting PCI 2.2 specification Physical dimensions: 9.25 x 5 inches

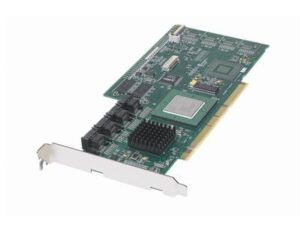

The Adaptec Serial ATA RAID 2810SA is an affordable 8-port I/O processor-based SATA RAID controller ideal for midrange workgroup, video, backup, and web servers using Serial ATA drives. Advanced features include Optimized Disk Utilization, Online Capacity Expansion, and RAID Level Migration. Adaptec Storage Manager provides centralized management for Adaptec host-based RAID controllers. Enclosure management support. RAID levels 0, 1, 5, 10, 50 and JBOD. Full OS support. Device Type: Storage controller (RAID) - plug-in card Cache Memory: 64 Mbyte Number of devices: Up to 8 Serial ATA drives Bus System Interface Type: 64-bit/66 MHz PCI Internal Connectors: Eight Serial ATA ports Data Transfer Rate: Up to 1.5 Gbits/sec System Requirements: Available PCI slot meeting PCI 2.2 specification Physical dimensions: 9.25 x 5 inches

AHA-1520A allows users to take advantage of SCSI's fast connection for their peripherals. With increased data transfer rates and drastically reduced wait times over parallel interface peripherals, AHA-1520A users will experience a dramatic increase in system performance. And since SCSI is the only connection that allows attachments to multiple external as well as internal peripherals, users get more connectivity for their systems with just one card. Manufactured by:ADAPTEC Model/Part #:AHA-1520A Device Type Storage controller - plug-in card Interface Type ISA Controller Interface Type Fast SCSI Data Transfer Rate 10 MBps Supported Devices Hard drive, tape drive, removable media drive, CD drive, scanner Max Storage Devices Qty 7 Interfaces 1 x storage - Fast SCSI - 50 pin IDC ( internal ) 1 x storage - Fast SCSI - 50 pin Centronics ( external ) Compatible Slots 1 x ISA Width 0.5 in Depth 6.9 in Height 4.2 in

The AHA-1542B host adapters connect up to seven SCSI devices to any PC. Designed for computers with standard ISA or EISA expansion slots, they are compatible with virtually any peripheral that complies with the SCSI-2 standard. Plus, they support all major operating systems -- Windows 95, Windows NT?, DOS/Windows?, OS/2, UnixWare, and NetWare. Number of devices: Up to 7 devices under DOS 5.0 and above Bus System Interface Type: ISA 16 Bit External Connectors: 50-pin Low Density Internal Connectors: 50-pin Data Transfer Rate: 10 MB/sec Device Protocol: SCSI-1, SCSI-2 Advanced SCSI Features: Advanced SCSI Programming Interface (ASPI) compliant, Multithreaded I/O, Scatter/gather, Disconnect/reconnect, Plug-and-Play SCSI, Synchronous and asynchronous data transfer SCSI Termination, Single-ended, active, programmable via SCSISelect Hard Disk Capacity: Up to 8 GBytes per disk Floppy Drive Support: Supports two floppy drives (3.5 in. and 5.25 in.) Board Dimensions: 6.3 inches (16.5 cm) L, 4.5 inches (11.4 cm) H Power Consumption: 5.0V +/- 0.25V @ 0.51 amps, excluding terminator power Operating Characteristics: 0?C to 55?C (32?F to 131?F) 10% to 90%, non condensing Relative Humidity Storage Characteristics: -55?C to 85?C (-40?F to 167?F)
