ADAPTEC CARDS

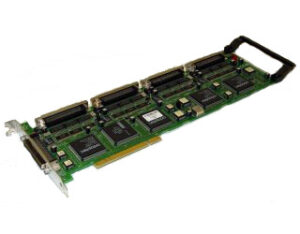

Adaptec Quad Channel PCI-to-ULTRA Wide Differential SCSI Manufactured by:ADAPTEC Model/Part :AHA-4944UW Controller Type: Storage controller - plug-in card Controller Interface Type: Ultra Wide System Bus Interface: PCI QUAD CHANNEL

The Adaptec Duo64 network interface card (NIC) maximizes the performance of PCI servers operating on Fast Ethernet and Ethernet networks. For applications requiring maximum throughput, such as graphics, multimedia, database, and mission-critical, this NIC increases the performance of PCI-based servers. Based on Adaptec's innovative DuraLAN technology, the unique NIC controller on the Duo64 provides increased bandwidth for even the most demanding networks. With full-duplex support, the Duo64 achieves a maximum throughput of 400 Mbps. This NIC can be used in conjunction with other Adaptec NICs to increase flexibility, performance, and cabling compatibility, and provides an easy migration path from Ethernet to Fast Ethernet. Manufactured by:ADAPTEC Model/Part :ANA-62022 Controller Type: Network adapter - 2 ports Form Factor: Plug-in card Interface (Bus) Type: PCI 64 Networking Connectivity Technology: Wired Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX Data Link Protocol: Ethernet, Fast Ethernet Data Transfer Rate: 100 Mbps Status Indicators: Link activity, link OK, receive Features: Full duplex capability Compliant Standards: IEEE 802.3, IEEE 802.3u RAM: 16 KB Interfaces: 2 x network - Ethernet 10Base-T/100Base-TX - RJ-45 - 2 Compatible Slots: 1 x PCI 64 Compliant Standards: Plug and Play

Adaptec ARO-1130B RAID option card optimizes performance and provides fault-tolerant storage for entry-level servers. Systems with embedded Adaptec AIC-7895 or AIC-7880 Ultra SCSI chips can be easily upgraded from SCSI to RAID by installing this low-cost option card. This card is ideal for improving data availability without sacrificing performance in systems with a PCI-RAIDport II connector on the system motherboard. The ARO-1130B RAID option card utilizes the already embedded Ultra SCSI chips as RAID channels to reduce complexity and cost. It supports Wide Ultra SCSI, Fast/Wide SCSI and SCSI devices from major vendors and works under Windows NT and Netware operating systems. Computer Bus: 32-bit PCI Local Bus plus RAIDport II connector Interface Protocol: Bus Master DMA Host Bust Data Transfer Rate: Up to 133 MByte/sec burst rate SCSI Synchronous Data Rate: AIC-7895: up to 80 MByte/sec (40 MByte/sec per channel) AIC-7880: up to 40 MByte/sec per channel Device Protocol: Ultra SCSI, Fast, and Wide (8- and 16-bit) 20 MHz Advanced Hardware Features : 60 NS EDO DIMM memory Flash upgradable firmware and BIOS SCSI Channels: AIC-7895 or AIC-7880 motherboard UltraSCSI chip connected to RAIDport II slot Device Support: Up to 15 HDD/non-HDD SCSI devices per motherboard channel Array Support: Drives can be configured for RAID levels 0, 1, 0/1, and 5. Drives can also be supported in non-array configurations Operating System Support: Windows NT 4.0, NetWare 4.11 and 3.12 Remote Management: Windows 3.x, Windows 95, Windows NT 4.0 and 3.51 Dimensions: 4.200" x 6.875" (10.668cm x 17.463cm) Power Consumption: 5V +/- 5% Temperature: Operating: 5?C to 55?C Storage: -55?C to 95?C Humidity: Operating: 20% to 90%, non condensing

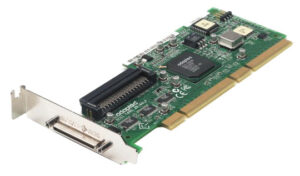

The Adaptec SCSI Card 29160 is tailored for entry to mid-range server environments. It delivers the maximum throughput for a single channel Ultra160 SCSI card by using a 64-bit PCI interface. The Adaptec SCSI Card 29160 provides the ideal connection to Ultra160 SCSI (LVD) hard disks and devices (internally and externally) and legacy devices (internally). Controller Type: SCSI Controller Enclosure: Internal SCSI Interface: Ultra160 SCSI Recommended Machine Type: Server, PC Platform: PC ? Unix ? Sun Bus Type: PCI Data Transfer Rate: 160 MBps Number of Internal Connectors: 3 Number of External Connectors: 1 Maximum Supported Devices: 15 Dimensions: Width: 3.87 in. Depth: 6.87 in.
