CISCO NETWORKING

As companies realize the benefits of the Internet, intranets, and extranets, they require access solutions that can accommodate growth and change. The Cisco 1600 series routers deliver the flexibility, security, and functionality that small offices demand today and as networks evolve. The Cisco 1600 series has become the proven choice for data access for small branch offices and small businesses. Cisco 1600 routers deliver a complete solution for remote access for small businesses and small branch offices. Manufactured by: CISCO Model/Part #: CISCO1604 Device Type Router Form Factor External - modular Installed Modules Qty (Max) 0 (installed) / 1 (max) Type 1 x Motorola 68360 33 MHz RISC Max Supported Qty 1 RAM 8 MB (installed) / 24 MB (max) - integrated Flash Memory 4 MB (installed) / 16 MB (max) Connectivity Technology Wired Data Transfer Rate 10 Mbps Data Link Protocol Ethernet, ISDN Network / Transport Protocol TCP/IP, IPX/SPX, SNA, AppleTalk Remote Management Protocol SNMP Status Indicators Port status, power Features DHCP support, NAT support, manageable Compliant Standards IEEE 802.3 Type ISDN terminal adapter Digital Ports Qty 2 Digital Signaling Protocol ISDN BRI Expansion Slots Total (Free) 1 ( 1 ) x memory 1 ( 0 ) x PC Card 1 ( 1 ) x expansion slot Interfaces 1 x network - Ethernet 10Base-T - RJ-45 - 1 1 x network - Ethernet AUI - 15 pin D-Sub (DB-15) - 1 1 x management - console - RJ-45 - 1 1 x modem - ISDN BRI U - RJ-45 - 1 1 x modem - ISDN BRI ST - RJ-45 - 1 Power Device Power adapter - external Voltage Required AC 100/240 V ( 50/60 Hz ) Power Consumption Operational 27 Watt

The Cisco 1600 series is the proven choice for data access for small businesses and small branch offices. Together with its WAN interface cards and Cisco IOS software, the Cisco 1600 series delivers the flexibility, security, and functionality that small offices demand today and as networks evolve. Cisco 1600 routers connect Ethernet LANs to WANs via ISDN, asynchronous serial and synchronous serial connections, supporting Frame Relay, leased lines, Switched 56, Switched Multimegabit Data Service (SMDS), and X.25. Manufactured by: CISCO Model/Part #: CISCO1605R Device Type Router Form Factor Rack-mountable - external - modular Type 1 x Motorola 68360 33 MHz RAM 8 MB (installed) / 24 MB (max) - integrated Flash Memory 4 MB (installed) / 16 MB (max) Connectivity Technology Wired Switching Protocol SMDS, PPP, X.25, Frame Relay, Ethernet Network / Transport Protocol TCP/IP, IPX/SPX, SNA, AppleTalk, X.25 Features DHCP support, NAT support, manageable Compliant Standards IEEE 802.3 Interfaces 2 x network - Ethernet 10Base-T - RJ-45 - 2 1 x network - Ethernet AUI - 15 pin D-Sub (DB-15) - 1 1 x management - console - RJ-45 - 1 Power Device Power supply - integrated Voltage Required AC 110/220 V ( 50/60 Hz ) Power Consumption Operational 27 Watt Weight 1.8 lbs

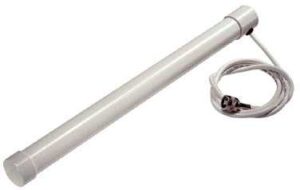

Every wireless Local Area Network (LAN) deployment is different. When engineering an in-building solution, varying facility sizes, construction materials, and interior divisions raise a host of transmission and multipath considerations. When implementing a building-to-building solution, distance, physical obstructions between facilities, and number of transmission points must be taken into account. Cisco is committed to providing not only the best access points, client adapters, and bridges in the industry-it is also committed to providing a complete solution for any wireless LAN deployment. That's why Cisco has the widest range of antennas, cable, and accessories available from any wireless manufacturer. Cisco offers an Antenna Kit with 5.2 dbi Omni Ceiling Mount Antenna and 3-feet cable. Manufactured by: CISCO Model/Part #: AIR-ANT1728 Product Type Antenna Directivity Omni-directional Gain 5.2 dBi Connector Provided 1 x RP-TNC Features Ceiling mountable Width 1.3 in Height 9 in Weight 4.6 oz

The AIR-ANT2460P-R is a wall mount, indoor/outdoor directional patch antenna. Designed for use with any radio that features an RP-TNC antenna connector. For use in the 2400-2500 MHz frequency band. The pigtail cable is plenum rated, 36" long. Manufactured by: CISCO Model/Part #: AIR-ANT2460P-R Product Type Antenna Directivity Directional Gain 6 dBi Features Wall mountable Width 3.9 in Depth 0.9 in Height 4.1 in
