The Cisco Catalyst 4500 Series Supervisor Engine V-10GE continues the nonblocking, robust Layer 2-4 switching found in previous Cisco Catalyst 4500 Series supervisor engines with the addition of wire-speed 10-Gigabit Ethernet uplinks, 136-Gbps capacity and 102-mpps throughput, and additional features to further enhance resilient control of converged data, voice, and video networks with high availability to help enable business resiliency for enterprise and metropolitan (metro) Ethernet customers. Network control extends from the backbone to the edge with intelligent services such as granular quality of service (QoS), Internet security, and network management. Manufactured by: CISCO Model/Part #: WS-X4516-10GE Device Type Control processor Processors Installed 1 x 800 MHz RAM Installed ( Max ) 512 MB SDRAM Form Factor Plug-in module Connectivity Technology Wired Switching Protocol Ethernet Network / Transport Protocol TCP/IP, AppleTalk, UDP/IP, ICMP/IP, IP/IPX Routing Protocol OSPF, IGRP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, EIGRP, IGMPv2, HSRP, IGMP, DVMRP, IGMPv3 Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP, RMON, Telnet, SNMP 3 Status Indicators Link OK, network utilization %, active, status Features Routing, layer 4 switching, layer 3 switching, layer 2 switching, DHCP support, BOOTP support, ARP support, Cisco Fast EtherChannel, VLAN support, Cisco Gigabit EtherChannel , IGMP snooping, IPv6 support Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s Expansion Slots Total (Free) 4 ( 4 ) x SFP (mini-GBIC) 2 ( 2 ) x X2 1 ( 1 ) x CompactFlash Card Interfaces 1 x management - console - RJ-45 1 x management - Ethernet 10Base-T/100Base-TX - RJ-45 Compatible Slots 1 x expansion slot Power Over Ethernet (PoE) Yes

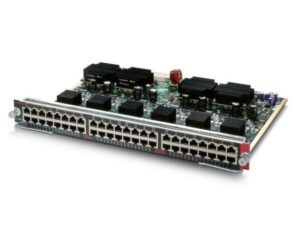

The new line cards enhance the Cisco Catalyst 4500 Series portfolio by giving customers the flexibility to support either the IEEE 802.3af standard or the Cisco prestandard PoE implementation on the same line card. This ensures backward compatibility with existing Cisco powered devices. All three line cards support up to 15.4 Watts per port on all ports, optional power classifications, and intelligent power-management features. The new cards are compatible with any Catalyst 4500 Series or Catalyst 4000 Series chassis and can be deployed with any Supervisor Engine. Most importantly, the Catalyst 4500 Series has the power supplies and accessories to simultaneously support up to 15.4W per port on every port in any fully loaded Cisco Catalyst 4500 Switch. Manufactured by: CISCO Model/Part #: WS-X4548-GB-RJ45V Device Type Switch Enclosure Type Plug-in module Ports Qty 48 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T Data Transfer Rate 1 Gbps Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet Connectivity Technology Wired Switching Protocol Ethernet Features Flow control, half duplex mode, full duplex mode Compliant Standards IEEE 802.3af, IEEE 802.3x Interfaces 48 x network / power - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female Compatible Slots 1 x expansion slot Compliant Standards NEBS level 3, CE, ETSI, CISPR 22 Class A, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A, CSA 22.2 No. 60950, AS/NZS 3548, FCC Part 15 A Power Over Ethernet (PoE) Yes

Cisco Expansion Module 8 x X2 Manufactured by: CISCO Model/Part #: WS-X4908-10GE= Application/Usage Data Networking Expansion Slots 8 x X2 Compatibility Cisco Catalyst 4900M Switch

Model: WS-X6704-10GE Manufactured by: CISCO Device Type: Expansion module Form Factor: Plug-in module Ports Qty: 4 ports Cabling Type: Ethernet 10GBase-X Data Link Protocol: 10 Gigabit LAN Data Transfer Rate: 10 Gbps Performance: Switching capacity : 40 Gbps RAM: 256 MB Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.3an, IEEE 802.3aq Dimensions (WxDxH): 35.6 cm x 40.6 cm x 3 cm
