CISCO NETWORKING

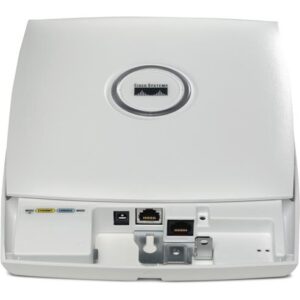

Cisco Aironet 1130AG Series IEEE 802.11a/b/g access points provide high-capacity, high-security, enterprise-class features in an unobtrusive, office-class design, delivering WLAN access with the lowest total cost of ownership. With high-performing dual IEEE 802.11a and 802.11g radios, the Cisco Aironet 1130AG Series provides a combined capacity of up to 108 Mbps to meet the needs of growing WLANs. Hardware-assisted Advanced Encryption Standard (AES) or temporal key integrity protocol (TKIP) encryption provides uncompromised support for interoperable IEEE 802.11i, Wi-Fi Protected Access 2 (WPA2) or WPA security. The Cisco Aironet 1130AG Series uses radio and network management features for simplified deployment, along with built-in omnidirectional antennas that provide robust and predictable WLAN coverage for offices and similar RF environments. Manufactured by: CISCO Model/Part: AIR-LAP1131AG-A-K9 Device Type Wireless access point RAM Installed ( Max ) 32 MB Flash Memory Installed (Max) 16 MB flash Form Factor External Connectivity Technology Wireless Data Transfer Rate 54 Mbps Line Coding Format CCK, OFDM Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g Spread Spectrum Method OFDM Remote Management Protocol SNMP, Telnet, HTTP, HTTPS Max Range Indoors 450 ft Max Range Open Space 950 ft Status Indicators Active, error, status Features Uplink, auto-sensing per device, BOOTP support Encryption Algorithm LEAP, AES, 128-bit WEP, 40-bit WEP, TLS, PEAP, TKIP, WPA, WPA2, AES-CCMP Authentication Method Secure Shell (SSH), MS-CHAP Compliant Standards IEEE 802.3, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED Antenna Internal integrated Antenna Qty 2 Directivity Omni-directional Interfaces 1 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45 Compliant Standards ETSI, VCCI, EN 60950, ICES-003, IEC 60950, UL 60950, CSA 22.2 No. 60950, EN 300.328, EN 301.489.1, EN 301.489.17, FCC Part 15.247, AS/NZS 4771, RSS-210, RSS-102, AS/NZS 3548, UL 2043 Power Over Ethernet (PoE) Yes Power Device Power adapter - external Voltage Required AC 120/230 V ( 50/60 Hz ) Power Consumption Operational 12.2 Watt Width 7.5 in Depth 1.3 in Height 7.5 in Weight 1.5 lbs

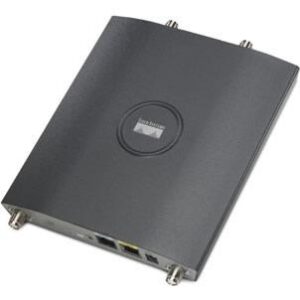

Cisco Aironet 1240AG Series IEEE 802.11a/b/g access points deliver the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. It is designed specifically for challenging RF environments like factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range. The Cisco Aironet 1240AG Series provides local as well as inline power, including support for IEEE 802.3af Power over Ethernet (PoE). Manufactured by: CISCO Model/Part #: AIR-LAP1242AG-A-K9 Device Type Wireless access point RAM Installed ( Max ) 32 MB Flash Memory Installed (Max) 16 MB flash Form Factor External Connectivity Technology Wireless Data Transfer Rate 54 Mbps Line Coding Format CCK, OFDM Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g Remote Management Protocol SNMP, Telnet, HTTPS Max Range Indoors 460 ft Max Range Open Space 950 ft Status Indicators Active, error, status Features Auto-sensing per device, BOOTP support, Lightweight Access Point Protocol (LWAPP) support Interfaces 2 x antenna - RP-TNC 1 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45 1 x management - console - RJ-45 Voltage Required AC 120/230 V ( 50/60 Hz ) Power Consumption Operational 13 Watt Width 6.6 in Depth 8.5 in Height 1.1 in Weight 2 lbs

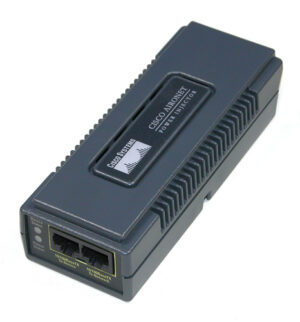

External, AC 100-240 V Manufactured by: Model/Part #: Device Type Power adapter - external Input Voltage AC 100-240 V Frequency Required 50 - 60 Hz
