Description

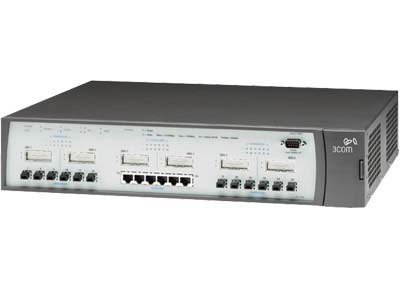

Designed for the demanding requirements at the core backbone of enterprise networks, 3Com Switch 4060 delivers a unique combination of performance, availability, and flexibility. The switch’s durable metal chassis – a compact, 2RU-high rack-mountable unit – is equipped with 12 1000BaseSX ports and six GBIC ports for backbone connectivity, as well as six integrated 10/100/1000 ports for server connections. Fault-tolerance features include modular, load-sharing, hot-swappable power supplies; modular, hot-swappable fan trays; and hot-swappable GBIC transceivers. You can install a second power supply for added power redundancy. The 3Com Switch 4060 features integrated media flexibility, supporting a variety of cabling plants and network topologies at the core of the network. An expansion slot can accommodate an additional four-port gigabit module for even greater flexibility.
Manufactured by: 3COM
Model/Part : 3C17709-US
Device Type: Switch
Enclosure Type: External – 2U
Installed Modules Qty (Max): 0 (installed) / 7 (max)
Localization: English / United States
Networking Ports Qty: 24 x Ethernet 10Base-T, Ethernet 1000Base-SX, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Transfer Rate: 1 Gbps
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol: OSPF, RIP-1, RIP-2, static IP routing
Remote Management Protocol: SNMP, RMON, Telnet, HTTP
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
Features: Flow control, full duplex capability, layer 3 switching, layer 2 switching, DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, IGMP snooping, Transparent Webcache redirection, E-mail alert
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w
Expansion Slots Total (Free): 6 ( 6 ) x GBIC 1 ( 1 ) x expansion slot
Interfaces: 6 x network – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 12 x network – Ethernet 1000Base-SX – MT-RJ
Authentication Method: RADIUS
Compliant Standards: FCC Class B certified, CSA, EN 60950, EN 61000-3-2, EN55022, ICES-003, IEC 825-1/EN 60825-1 class 1, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024
Power Device: Power supply – hot-plug / redundant – plug-in module
Installed Qty: 1 (installed) / 2 (max)
Voltage Required: AC 120/230 V ( 50/60 Hz )
Width: 17.3 in
Depth: 14.3 in
Height: 3.3 in
Weight: 19.8 lbs
