Description
The PathBuilder S310 provides complete integration into existing application environments by supporting legacy data, video, and voice applications, thereby avoiding costly forklift upgrades. Video dial feature supports point-to-point and multi-point dialed video conferencing over ATM networks, including RS-366 video dial Static call routing for all destinations. The PathBuilder S310 is ideal for video equipment such as H320.

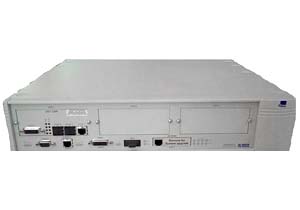

Manufactured by: 3COM
Model/Part : 3C63502A-NC
Device Type: Switch
Enclosure Type: External – 2U
Installed Modules Qty (Max): 0 (installed) / 3 (max)
Processor: 360 MHz
RAM: 16 MB
Flash Memory: 8 MB
Networking Ports Qty: X Ethernet 10Base-T, serial
Data Transfer Rate: 10 Mbps
Data Link Protocol: Ethernet, Token Ring, ATM, ISDN, Frame Relay, X.25, V.35, RS-449
Remote Management Protocol: RMON 1, RMON 2, SNMP, Telnet
Framing Format: D4, ESF
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: X.25, Frame Relay, ATM, Ethernet, Token Ring
MAC Address Table Size: 8K entries
Status Indicators: Power, link OK, alert, status, transmit, receive
Compliant Standards: IEEE 802.3, ANSI T1.403, ANSI T1.617
Expansion Slots Total (Free): 3 ( 3 ) x expansion slot
Interfaces: 1 x management – RS-232C – 9 pin D-Sub (DB-9) 1 x network – Ethernet 10Base-T – RJ-45 1 x network – T1 – RJ-48 1 x serial – RS-449/530/V.35/X.21 – 60 pin HD D-Sub (HD-60)
Compliant Standards: FCC Class A certified, EN 60950, EN50082, UL 1950, CSA 22.2 No. 950, EN55022 Class A
Power Device: Power supply – internal
Installed Qty: 1 (installed) / 2 (max)
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 60 Watt
Width: 17 in
Depth: 15.2 in
Height: 3.5 in
