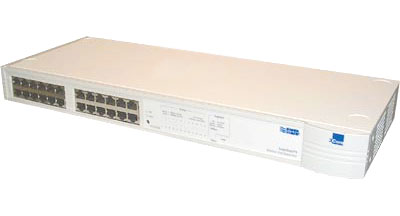

Description
The 3Com SuperStack II Baseline Dual Speed Hubs give you the simplest way to migrate to high-speed Fast Ethernet networking while protecting your existing network investment. The Baseline Dual Speed Hubs allow you to provide high-speed connections to users while maintaining compatibility with legacy shared 10 Mbps Ethernet networks. Power users using Fast Ethernet who require faster server and network response times can coexist with Ethernet users without draining valuable network bandwidth.
Each Baseline Dual Speed Hub has 12 or 24 auto-sensing ports, which automatically detect the speed of the attached device and optimize network performance at either 10 Mbps or 100 Mbps.
Manufactured by: 3COM
Model/Part : 3C16593A
Device Type: Hub – stackable
Enclosure Type: Rack-mountable – external
Installed Modules Qty (Max): 0 (installed) / 2 (max)
Networking Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Connectivity Technology: Wired
Switching Protocol: Ethernet
Status Indicators: Port status, link activity, collision status, power
Compliant Standards: IEEE 802.3, IEEE 802.3u
Expansion Slots Total (Free): 2 ( 2 )
Interfaces: 24 x network node – Ethernet 10Base-T/100Base-TX – RJ-45 female – 24
Power Device: Power supply – integrated
Voltage Required: AC 100/240 V ? 10% ( 50/60 Hz )
Power Consumption Operational: 130 Watt
Enclosure Color: White
Width: 17.3 in
Depth: 6.8 in
Height: 1.7 in
Weight: 5.1 lbs
