Description

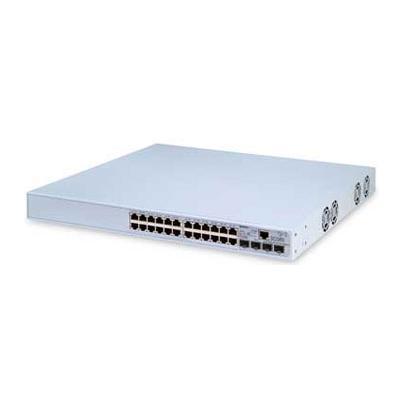

The 3Com Unified Gigabit Wireless PoE Switch 24 is the industry’s first truly integrated and cost-effective Layer 2 Gigabit Power over Ethernet (PoE) switch that provides centralized management of both the wired and wireless network. This unified switch offers the small-to-medium-sized business market with 20 to 250 users a one-box solution for the integration of wired, wireless, PoE and convergence applications.
Integration of wired Layer 2 switching, wireless access points, and PoE support provide single go-to point for network deployment, management and troubleshooting, reducing the total cost of ownership (TCO). With centrally maintained access point settings, there is no need to individually configure each devices SSIDs, VLANs, access control lists and security settings.
Manufactured by: 3COM
Model/Part : 3CRUS2475
Type: Switch
Enclosure Type: External – 1U
Networking Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Transfer Rate: 1 Gbps
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Status Indicators: Link activity, port transmission speed, power, link OK
Features: Layer 2 switching, auto-sensing per device, auto-negotiation, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, firmware upgradable, Wi-Fi Multimedia (WMM) support
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s
Expansion Slots Total (Free): 4 ( 4 ) x SFP (mini-GBIC)
Interfaces: 24 x network / power – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 1 x management – console – RJ-45
Encryption Algorithm: RSA, RC4, 128-bit WEP, 64-bit WEP, 40-bit WEP, SSL, TLS, PEAP, TTLS, 104-bit WEP, TKIP, WPA, WPA2, 128-bit AES
Authentication Method: RADIUS
Compliant Standards: FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, IEC 60601-1-2, EN55022 Class A, FCC Part 15 B, ICES-003 Class A, RoHS, UL 60950-1, EN 60950-1
Power Over Ethernet (PoE): Yes
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 465 Watt
Width: 17.3 in
Depth: 16.3 in
Height: 1.7 in
Weight: 13 lbs
