Description

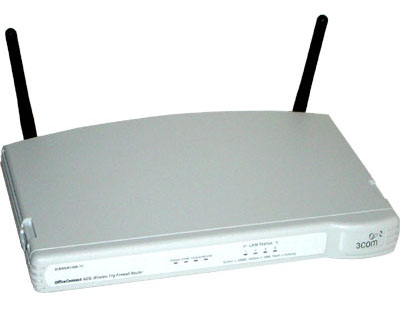

The 3Com ADSL Wireless 11g Firewall Router combines an ADSL modem, router, 802.11g wireless access point, four-port switch, and firewall to enable up to 253 total (128 wireless) users to economically and securely share a single ADSL connection. The high-speed routing engine easily handles large data transfers and Internet downloads, including those from multimedia applications.
The 11g ADSL router provides a high-speed, 54 Mbps wireless connection for users with 802.11g-equipped PCs and laptops. It is also backward-compatible with 802.11b wireless LAN equipment, preserving existing network investments. And the Wi-Fi compatible router interoperates with Wi-Fi-certified products from other vendors.
Manufactured by: 3COM
Model/Part : 3CRWDR100B-72
Type: Wireless router
Form Factor: External
Built-in Devices: Antenna
Connectivity Technology: Wireless, wired
Integrated Switch: 4-port switch
Data Transfer Rate: 54 Mbps
Frequency Band: 2.4 GHz
Line Coding Format: CCK, OFDM
Data Link Protocol: Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g
Spread Spectrum Method: OFDM, DSSS
Switching Protocol: Ethernet
Network / Transport Protocol: TCP/IP, PPTP, UDP/IP, IPSec, PPPoE, PPPoA
Routing Protocol: RIP-1, RIP-2, static IP routing
Remote Management Protocol: SNMP 1, SNMP 2, HTTP
Max Range Indoors: 330 ft
Max Range Open Space: 1560 ft
Status Indicators: Port status, link activity
Features: Firewall protection, switching, auto-sensing per device, dynamic IP address assignment , DHCP support, NAT support, PAT support, auto-uplink (auto MDI/MDI-X), traffic shaping, Stateful Packet Inspection (SPI), manageable, MAC address filtering, VPN passthrough, URL filtering
Compliant Standards: IEEE 802.11b, IEEE 802.11g, Wi-Fi CERTIFIED
Communications Type: DSL modem
Digital Signaling Protocol: ADSL Lite, ADSL, ADSL over ISDN
Protocols & Specifications: ITU G.992.2 (G.Lite), ITU G.992.1 (G.DMT) Annex A
Interfaces: 4 x network – Ethernet 10Base-T/100Base-TX – RJ-45 1 x modem – ADSL – RJ-11 ( WAN )
Encryption Algorithm: 128-bit WEP, 64-bit WEP, 40-bit WEP, 256-bit WPA
Authentication Method: CHAP, Radio Service Set ID (SSID)
Compliant Standards: EN 60950, IEC 60950, EN55024, UPnP, EN55022 Class B
Power Device: Power adapter – external
Voltage Required: ( 50/60 Hz )
Power Provided: 15 Watt
Width: 8.7 in
Depth: 5.2 in
Height: 1.5 in
Weight: 1.3 lbs
