Description

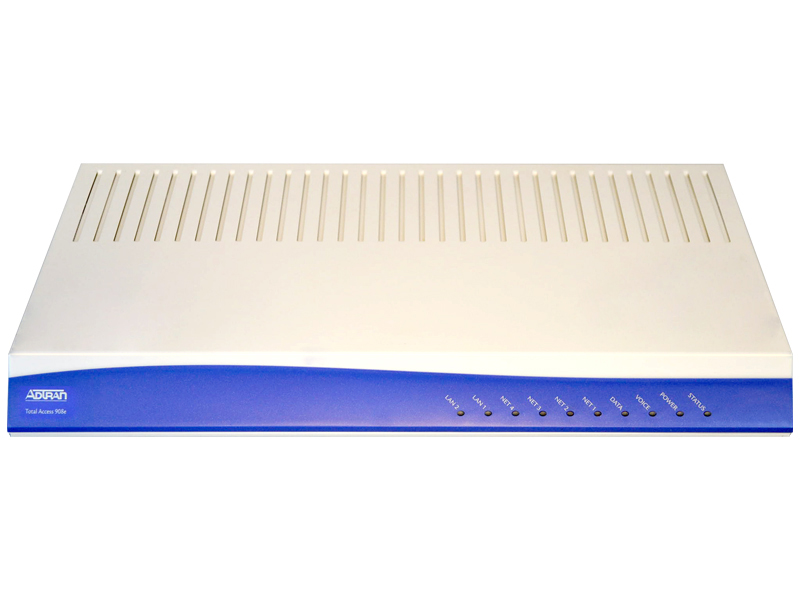

ADTRAN offers a wide variety of solutions for converged voice/data services. The Total Access 900e series of Multi-T1 IP business gateways are designed for carrier SIP/MGCP Voice over IP (VoIP) networks. These products feature all of the same robust routing and voice features of the widely deployed Total Access Integrated Access Devices (IADs), along with a host of features and functions that enable cost-effective, reliable IP service delivery. These devices use the ADTRAN Operating System (AOS) to simplify management and administration. Multiple models offer flexibility for varied applications from PRI delivery and trunking services to hosted IP PBX offerings. The Total Access 900e series offers up to four T1s. User interfaces include up to 24 FXS ports for analog voice delivery, an integrated DSX-1 port for PBX connectivity (T1 CAS or PRI), and two 10/100Base-T Ethernet interfaces for access to the 900e’s router. The Total Access 900e series can be coupled with a NetVanta 1224ST Power over Ethernet (PoE) switch to provide connectivity to a variety of network devices and personal computers, as well as to power IP phones and Wireless Access Points (WAPs).
Manufactured by:ADTRAN
Model/Part :4242908L5
Enclosure Type: Desktop – 1U
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, HDLC, Frame Relay, PPP, TDM, MLPPP, FRF.12
Network / Transport Protocol: UDP/IP
Routing Protocol: OSPF, RIP-1, RIP-2, BGP, IGMPv2, GRE
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, SSH, CLI
Features: Firewall protection, auto-sensing per device, DHCP support, NAT support, NAPT support, trunking, VLAN support, Syslog support, traffic shaping, Stateful Packet Inspection (SPI), DoS attack prevention, packet filtering, ALG support, DiffServ support, firmware upgradable, Low-latency queuing (LLQ), Weighted Fair Queuing (WFQ), wall mountable, Voice Quality Monitoring (VQM), Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server
Compliant Standards: IEEE 802.1Q , FCC Part 68, CS-03, C-ETL, ETL, FCC Part 15 A
RAM: 128 MB
Flash Memory: 32 MB
Line Rate: Fractional T-1/T-1
Type: Voice interface card
Analog Ports Qty: 8
Protocols & Specifications: ITU G.168, ITU T.38
Data Compression Protocol: G.711, G.729.A
VoIP Functionality: VoIP phone adapter
VoIP Protocols: MGCP, SIP
Voice Codecs: G.711, G.729a, T.38
Telephony Interfaces: 1 line (FXO), 8 phone (FXS)
IP Telephony Features: Voice activity detection (VAD), echo cancellation (G.168), call forwarding, caller ID, call hold
Interfaces: WAN / DMZ : 2 x 10Base-T/100Base-TX – RJ-45 Management : 1 x RS-232 – 9 pin D-Sub (DB-9) Phone line : 8 x FXS – 50 pin Telco WAN : 1 x DSX-1 – RJ-48C WAN : 3 x T1-FT1 – RJ-48C Phone line : 1 x FXO
Power Device: Internal power supply
Voltage Required: AC 120 V ( 60 Hz )
OS Provided: ADTRAN OS
Width: 17 in
Depth: 10.5 in
Height: 1.7 in
Weight: 6.4 lbs
Min Operating Temperature: 32 F
Max Operating Temperature: 122 F
Humidity Range Operating: 0 – 95% (non-condensing)
