Description
The ProCurve Switch 8100fl series is the first interconnect fabric switch in the industry that focuses on delivering a high availability, high-bandwidth, and cost-effective interconnect switch, providing an excellent interconnect for the Adaptive EDGE Architecture network. The Switch 8100fl series is streamlined to provide high-availability and high-performance connectivity between intelligent EDGE devices, with a focus on providing a superior feature set for enabling an Adaptive EDGE Architecture design. The Switch 8100fl series, combined with ProCurve intelligent EDGE devices, provides advanced capabilities that enable an easy migration to applications that require security, mobility, and convergence decisions at the edge.
Manufactured by:HP

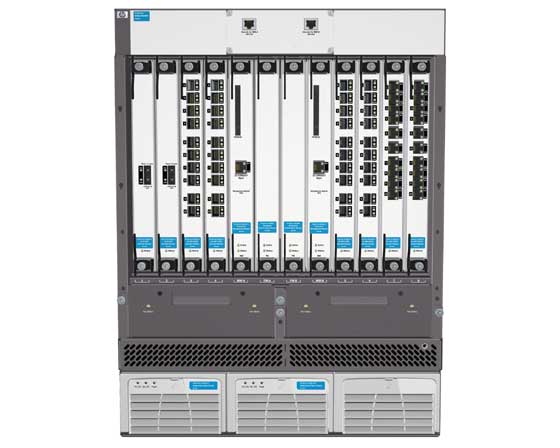

Model/Part :J8727A
Device Type: Switch
Enclosure Type” Rack-mountable – 13U
Localization: English / United States
Routing Protocol: OSPF, RIP, RIP-2, VRRP, static IP routing
Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 2c
Connectivity Technology: Wired
Features: ARP support, VLAN support, port mirroring
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s
Expansion Slots Total (Free): 8 ( 8 ) x expansion slot
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards: FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, ICES-003, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, FCC Part 15 B, MOC, AS/NZS 3548, UL 1950 Third Edition
Power Device: Power supply
Power supply Qty: 1 (installed) / 3 (max)
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 1500 Watt
Width: 17.3 in
Depth: 21.5 in
Height: 22.7 in
Weight: 218.0 lbs
