Description

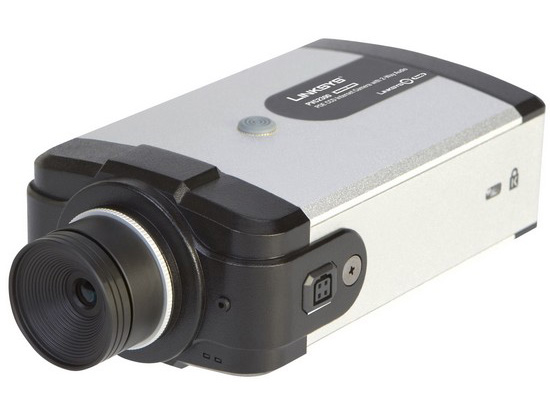

Linksys PVC2300 Business Internet Video Camera with Audio and PoE. High-Quality Video with CCD Sensor and low light sensitivity. It provides for flexible installation with support for PoE, interchangeable lenses, I/O ports, and PT-base controls through RS-485 connection. The simultaneous dual CODEC (MPEG-4 and MJPEG) provides optimal combination of viewing and storage of video.
Manufactured by: LINKSYS
Model/Part : PVC2300
Standards: IEEE802.3, IEEE802.3u, IEEE802.1p (QoS Priority), IEEE802.1q (VLAN)
Protocols Supported: TCP/IP, HTTP, DHCP, SMTP, FTP, NTP, DNS, UPnP, RTP, RTSP and DDNS
Ports: Ethernet w/POE, Microphone IN, Speaker OUT, Power (12V, 1A), GPIO, 4-pin IRIS port
Buttons:Reset
Cabling Type: UTP CAT 5
LEDs: Power, Network
Camera Type: Box
IO ports: RS-485 x 1 (2 pins) – Supports Pelco “D” protocol commands
Input control x 2 (2 pins), Output control x 2 (2 pins)
Lens Sensor: 1/4″ Progressive CCD Sensor
Illumination: 0.4LUX@F1.7
Lens type: CS Mount lens, fixed focus; Adapter also included for lenses that requires more distance between sensor and lens
Focal Length: 500mm~Infinity (for included lens)
Field of View: 60o (for included lens)
Video Resolution: 640×480 (VGA), 320×240 (QVGA), 160×120 (QQVGA)
Frame Rate: 1 to 30 fps (selectable)
Iris: Provides Iris control for CS-mount auto-iris lens when attached
WebUI: Built in Web UI for Easy Browser-Based Configuration (HTTP)
Dual Codec: MPEG-4 Simple Profile, MJPEG, Simultaneous dual-stream
Snapshot: JPEG
Zoom: 4x Digital Zoom
IEEE 802.3af Power over Ethernet (PoE) – 48V/0.3A
External Power Adapter: 12V/1A, 110~120V AC/60Hz, Switching
Dimensions (W x D x H): 4.72″ x 1.81″ x 2.99″
Weight: 1.15 lbs (18.34 oz)
