Description

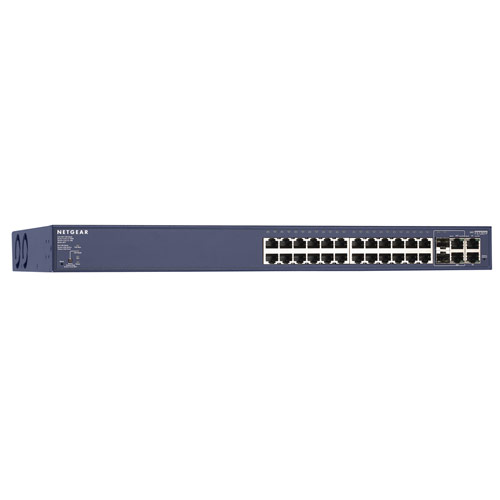

NETGEAR ProSafe FS728TP, provides power and data using built-in IEEE 802.3af PoE on all 24 10/100 ports. In addition, the FS728TP offers advanced features such as Access Control Lists (ACL), 802.1x port authentication, enhanced QoS, rate limiting and IGMP Snooping, to provide a small and medium-sized business with a network geared for growth while providing scalability and reliability. An intuitive web-based management tool provides quick, easy deployment and configuration, making it ideal for deploying VoIP phones, access points and IP surveillance cameras.
Manufactured by: NETGEAR
Model/Part : FS728TP
Product Type: Switch – stackable
Enclosure Type: External – 1U
Built-in Devices: LED panel
Memory RAM: 3 MB
Networking Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX
Auxiliary Network Ports: 2x1000Base-T/SFP (mini-GBIC), 2x1000Base-T
Max Units In A Stack: 6
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Status Indicators: Link activity, port transmission speed, power, link OK, Unit ID
Features: Layer 2 switching, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, port mirroring, MAC address filtering, Broadcast Storm Control, firmware upgradable, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x
Expansion Slots Total (Free): 2 ( 2 ) x SFP (mini-GBIC)
Interfaces: 24 x network / power – Ethernet 10Base-T/100Base-TX – RJ-45 4 x network – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45
Authentication Method: RADIUS, TACACS+
Compliant Standards: CE, FCC Class A certified, C-Tick, cUL, EN 60950, IEC950, VCCI Class A ITE, EN55024, FCC Part 15
Power Over Ethernet (PoE): Yes
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 225 Watt
Width: 17.3 in
Depth: 8.1 in
Height: 1.7 in
Weight: 8.8 lbs
