Description

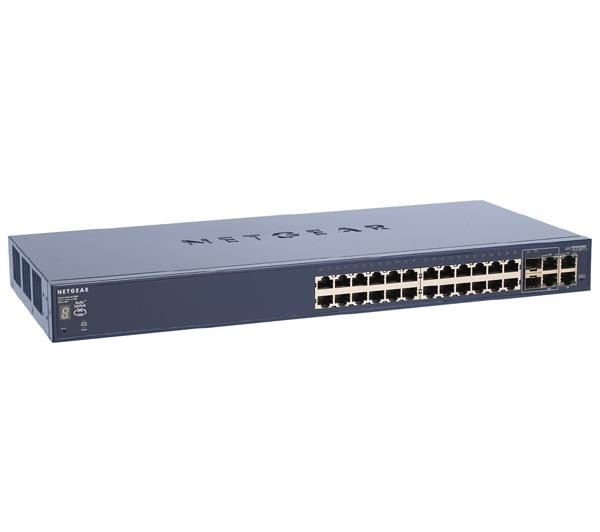

NETGEAR expands its line of award-winning ProSafe Smart Switches with a suite of 10/100 Stackable Smart Switches. The ProSafe Stackable Smart Switches adds the flexibility of economical, modular growth paired with a more robust management feature set and still gives you the ease of use and affordability you expect from ProSafe Smart Switches. Two of the Gigabit Ethernet ports offer the option of fiber connectivity via Small Form-factor Pluggable (SFP) GBIC slots for long distance links. NETGEAR’s ProSafe FS728TS delivers performance and scalability through a 4Gbps, dual-ring, resilient stacking architecture with the ability to mix and match to stack up to six units or 192 10/100 ports – and manage them all at a single IP address! The non-blocking design of the switch delivers simultaneous, full wire-speed, low-latency throughput to all ports. Shipped ready to go straight out of the box, it delivers switching that’s easy to set up, stack-up and use.
Manufactured by: NETGEAR
Model/Part : FS728TS
Product Type: Switch – stackable
Enclosure Type: External – 1U
Built-in Devices: LED panel
Memory RAM: 3 MB
Networking Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX
Auxiliary Network Ports: 2x1000Base-T/SFP (mini-GBIC), 2x1000Base-T
Max Units In A Stack: 6
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Status Indicators: Link activity, port transmission speed, power, link OK, Unit ID
Features: Layer 2 switching, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, port mirroring, MAC address filtering, Broadcast Storm Control, firmware upgradable, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x
Expansion Slots Total (Free): 2 ( 2 ) x SFP (mini-GBIC)
Interfaces: 24 x network / power – Ethernet 10Base-T/100Base-TX – RJ-45 4 x network – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45
Authentication Method: RADIUS, TACACS+
Compliant Standards: CE, FCC Class A certified, C-Tick, cUL, EN 60950, IEC950, VCCI Class A ITE, EN55024, FCC Part 15
Power Over Ethernet (PoE): Yes
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 225 Watt
Width: 17.3 in
Depth: 8.1 in
Height: 1.7 in
Weight: 8.8 lbs
