Description

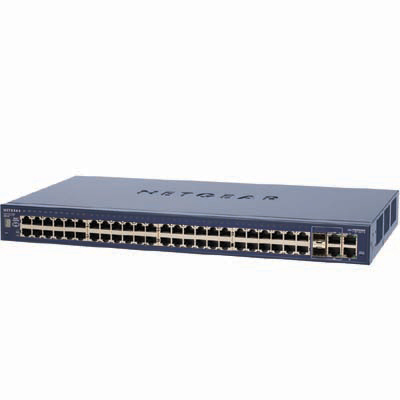

The NETGEAR FS752TPS Smart Switch is a 48-Port 10/100M and PoE Stackable Smart Switch with 4 Gigabit Ports. Each RJ45 port automatically senses the line speed and negotiates duplex mode operation with the link partner. The device also offers 24 PoE (Power over Ethernet) enabled ports.
Manufactured by: NETGEAR
Model/Part : FS752TPS
Product Type: Switch – stackable
Enclosure Type: External – 1U
Built-in Devices: LED panel
Localization: North America
Memory RAM: 128 KB
Networking Ports Qty: 48 x Ethernet 10Base-T, Ethernet 100Base-TX
Auxiliary Network Ports: 2x1000Base-T/SFP (mini-GBIC), 2x1000Base-T
Max Units In A Stack: 6
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Status Indicators: Link activity, port transmission speed, power, link OK, Unit ID
Features: Auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), traffic shaping, port mirroring, MAC address filtering, Broadcast Storm Control, firmware upgradable
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x
Expansion Slots Total (Free): 2 ( 2 ) x SFP (mini-GBIC)
Interfaces: 24 x network – Ethernet 10Base-T/100Base-TX – RJ-45 4 x network – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 24 x network / power – Ethernet 10Base-T/100Base-TX – RJ-45
Compliant Standards: CE, FCC Class A certified, C-Tick, CISPR 24, EN 60950, EN55022, VCCI Class A ITE, EN55024, UL 60950, CISPR 22, FCC Part 15
Power Over Ethernet (PoE): Yes
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Width: 17.3 in
Depth: 8.1 in
Height: 1.7 in
