Description

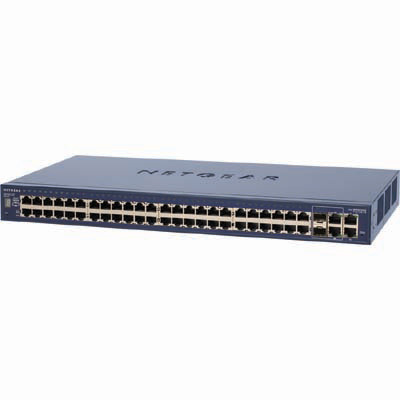

NETGEAR’s ProSafe FS752TS deliver performance and scalability through a 4Gbps, dual-ring, resilient stacking architecture with the ability to mix and match to stack up to six units or 192 10/100 ports and manage them all at a single IP address. The non-blocking design of the switches deliver simultaneous, full wire-speed, low-latency throughput to all ports. Shipped ready to go straight out of the box, they deliver switching that’s easy to set up, stack-up and use.
Manufactured by:NETGEAR
Model/Part :FS752TS
Product Type: Switch – stackable
Enclosure Type: External – 1U
Built-in Devices: LED panel
Memory RAM: 128 KB
Networking Ports Qty: 48 x Ethernet 10Base-T, Ethernet 100Base-TX
Auxiliary Network Ports: 2x1000Base-T/SFP (mini-GBIC), 2x1000Base-T
Max Units In A Stack: 6
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Status Indicators: Link activity, port transmission speed, power, link OK, Unit ID
Features: Auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), traffic shaping, port mirroring, MAC address filtering, Broadcast Storm Control, firmware upgradable
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x
Expansion Slots Total (Free): 2 ( 2 ) x SFP (mini-GBIC)
Interfaces: 48 x network – Ethernet 10Base-T/100Base-TX – RJ-45 4 x network – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45
Compliant Standards: CE, FCC Class A certified, C-Tick, CISPR 24, EN 60950, EN55022, VCCI Class A ITE, EN55024, UL 60950, CISPR 22, FCC Part 15
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 15 Watt
Width: 17.3 in
Depth: 8.1 in
Height: 1.7 in
