Description

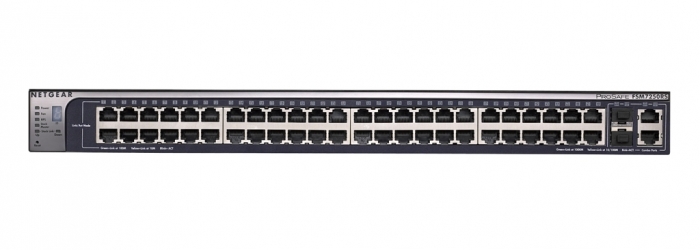

NETGEAR’s low-cost, stackable, Fast Ethernet switch delivers maximum throughput and flexibility where you need it – to high-density workgroups at the edge of the network, or in the backbone of small networks. The ProSafe FSM7250RS is a managed 48-port switch with auto-sensing 10/100 ports and two 10/100/1000 ports. This enables fiber connectivity through two hot-swappable small form-factor pluggable (SFP) Gigabit interfaces. The non-blocking design of the switch delivers simultaneous, full wire-speed, low-latency throughput to all ports. In addition, its 1U rack-mount form factor uses less rack space and provides a lower per-port cost than comparable Fast Ethernet switches. For workgroup deployments in cost-sensitive organizations that require Layer 2 switching, the flexibility of stacking and additional Gigabit capability, NETGEAR’s ProSafe FSM7250RS switch delivers the ideal access-edge solution.
Manufactured by:NETGEAR
Model/Part :FSM7250RS
Product Type: Switch – stackable
Enclosure Type: External – 1U
Localization: North America
Memory RAM: 128 MB
Flash Memory: 32 MB flash
Networking Ports Qty: 48 x Ethernet 10Base-T, Ethernet 100Base-TX
Auxiliary Network Ports: 2×10/100/1000Base-T/SFP (mini-GBIC)
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Routing Protocol: Static IP routing
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2
Connectivity Technology: Wired
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Status Indicators: Link activity, port transmission speed, power, link OK
Features: Flow control, layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, temperature sensor
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v
Expansion Slots Total (Free): 2 ( 2 ) x SFP (mini-GBIC)
Interfaces: 48 x network node – Ethernet 10Base-T/100Base-TX – RJ-45 2 x network host – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 1 x management – RS-232 2 x network stack device
Encryption Algorithm: TLS 1.0, SSL 3.0
Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards: CE, C-Tick, CISPR 22 Class A, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, FCC Part 15 A
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50 – 60 Hz )
Power Consumption Operational 33 Watt
Features: Redundant Power System (RPS) connector
Width: 17.3 in
Depth: 10.1 in
Height: 1.7 in
Weight: 7.9 lbs
