Description

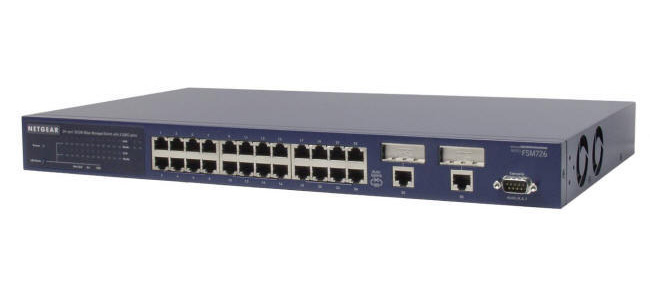

NETGEAR’s FSM726 is a layer 2 managed switch that’s ideal for anyone new to managed switching. The versatile FSM726 offers two management interface options: an easy-to-use, browser-based interface and a command line interface. Management features include SNMP, RMON, VLAN, QoS, port trunking, Spanning Tree, and port mirroring. All ports are auto-negotiating and support Auto Uplink technology.
Manufactured by: NETGEAR
Model/Part : FSM726
Product Type: Switch
Enclosure Type: External
Installed Modules Qty (Max): 0 (installed) / 2 (max)
Networking Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX
Auxiliary Network Ports: 2×10/100/1000Base-T(uplink)
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Remote Management Protocol: RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, HTTP
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Status Indicators: Link activity, collision status, port transmission speed, port duplex mode, power
Features: Flow control, DHCP support, auto-negotiation, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, manageable
Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x
Expansion Slots Total (Free): 2 ( 2 ) x GBIC
Interfaces: 24 x network node – Ethernet 10Base-T/100Base-TX – RJ-45 2 x network host – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 1 x management – RS-232 – 9 pin D-Sub (DB-9)
Authentication Method: RADIUS
Compliant Standards: CE, FCC Class A certified, CSA, TUV, C-Tick, cUL, EN 60950, EN50082, EN55022, IEC950, UL 1950, VCCI Class A ITE, EN55024
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 36 Watt
Width: 17.3 in
Depth: 8.1 in
Height: 1.7 in
Weight: 7.1 lbs
