Description

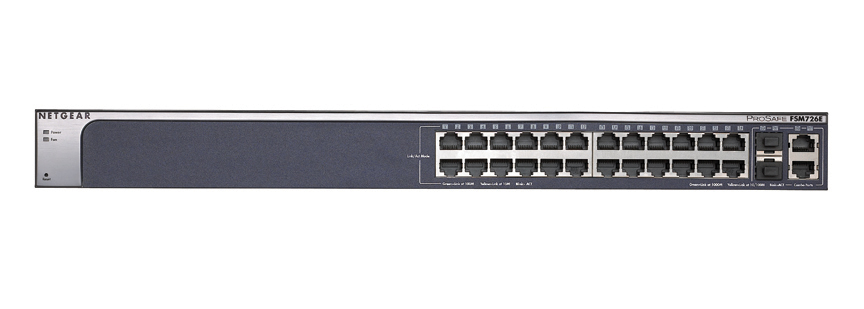

NETGEAR’s low-cost, Fast Ethernet switches deliver maximum throughput and flexibility where you need it – to high-density workgroups at the edge of the network, or in the backbone of small networks. The ProSafe FSM726E is a managed 24-port switch with auto-sensing 10/100Mbps and two combo 1 Gigabit Ethernet (10/100/1000Mbps or SFP fiber) ports. This enables fiber connectivity through two hot-swappable small form-factor pluggable (SFP) gigabit interfaces. The non-blocking design of the switches delivers simultaneous, full wire-speed, low-latency throughput to all ports. In addition, their 1U rack-mount form factor uses less rack space and provides a lower per-port cost than comparable Fast Ethernet switches.
Manufactured by: NETGEAR
Model/Part : FSM726E
Product Type: Switch
Enclosure Type: External – 1U
Localization: North America
Memory RAM: 128 MB
Flash Memory: 32 MB flash
Networking Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX
Auxiliary Network Ports: 2x1000Base-T/SFP (mini-GBIC)
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2
Connectivity Technology: Wired
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Status Indicators: Link activity, port transmission speed, power, link OK
Features: Flow control, layer 2 switching, DHCP support, auto-negotiation, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, firmware upgradable, SNTP support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, temperature sensor
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v
Expansion Slots Total (Free): 2 ( 2 ) x SFP (mini-GBIC)
Interfaces: 24 x network – Ethernet 10Base-T/100Base-TX – RJ-45 2 x network – Ethernet 1000Base-T – RJ-45 1 x management – RS-232
Encryption Algorithm: TLS 1.0, SSL 3.0
Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards: CE, C-Tick, CISPR 22 Class A, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, FCC Part 15 A
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 15 Watt
Width: 17.3 in
Depth: 8.1 in
Height: 1.7 in
Weight: 6.2 lbs
