Description
Maximize your 10/100 network. The NETGEAR FSM7326P Switch features Power-over-Ethernet (PoE), which optimizes the installation and power management of network devices such as wireless access points (AP), Voice over IP (VoIP) phones, and security video cameras. Power-over-Ethernet (IEEE 802.3af) capabilities reduce installation costs for many new network productivity devices. It frees your wireless AP deployment from restrictions due to power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time.The FSM7326P Layer 3 provides both Layer 2 and Layer 3 managed switching functionality, including routing, switching, and quality of service (QoS) feature sets. It can be used to provide new IP-based services: multiple VLANs, QoS, bandwidth limiting, and access control features enable smooth, clear VoIP telephony and video conferencing; subnetting and strong, standards-based security protocols isolate wireless APs and video surveillance equipment, protecting critical data from potential abuse; IP subnetting and gigabit ports provide dedicated high-speed links to servers and network backbones.Affordable and reliable, the FSM7326P’s robust feature set is ideal for small and growing businesses that want to get the most out of their networks.

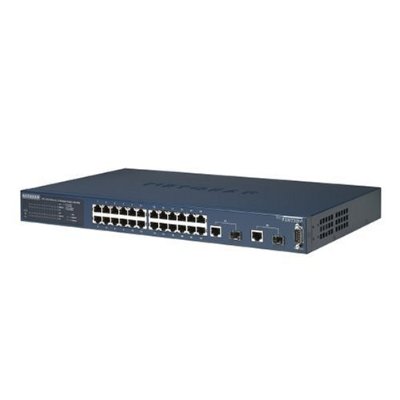

Manufactured by: NETGEAR
Model/Part : FSM7326P
Product Type: Switch
Enclosure Type: External
Memory RAM: 128 MB
Flash Memory: 16 MB
Networking Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX
Auxiliary Network Ports: 2×10/100/1000Base-T/SFP (mini-GBIC)
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Routing Protocol: RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2
Remote Management Protocol: SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, HTTP
Connectivity Technology: Wired
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Status Indicators: Link activity, port transmission speed, power, status
Features: Flow control, routing, layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, port mirroring, manageable, store and forward, Broadcast Storm Control
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v
Expansion Slots Total (Free): 2 ( 2 ) x SFP (mini-GBIC)
Interfaces: 24 x network node – Ethernet 10Base-T/100Base-TX – RJ-45 2 x network host – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 1 x management – 9 pin D-Sub (DB-9)
Authentication Method: RADIUS
Compliant Standards: CE, FCC Class A certified, TUV, C-Tick, CISPR 22 Class A, cUL, EN 60950, EN50082, EN55022, IEC950, UL 1950, VCCI Class A ITE, EN55024, CSA 22.2 No. 950, EN55022 Class A
Power Over Ethernet (PoE): Yes
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 36 Watt
Features: Redundant Power System (RPS) connector
Width: 17.3 in
Depth: 15.2 in
Height: 1.7 in
