Description

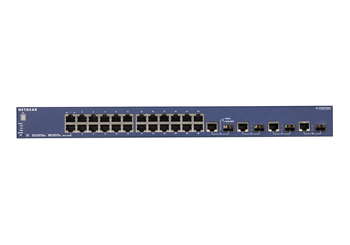

The ProSafe FSM7328PS is a feature-rich Fast Ethernet Layer 3 Managed Stackable switch with Power over Ethernet (PoE) that delivers wire-speed performance at an affordable price.
With PoE on all 24 ports, the ProSafe FSM7328PS features 24 auto-sensing 10/100 ports and four 10/100/1000 ports enabling fiber connectivity through four combination hot-swappable small form-factor pluggable (SFP) Gigabit interfaces. The non-blocking design delivers full wire-speed throughput simultaneously to all ports ensuring reliable, low-latency throughput in a 1U rack-mount form factor.
Built-in dynamic Layer 3 switching delivers the advantage of routing between VLANs and network segmentation where and when you need it at no additional cost. Multiple VLANs, QoS, bandwidth-limiting, and access control features enable smooth, clear VoIP telephony and video conferencing.
Manufactured by: NETGEAR
Model/Part : FSM7328PS
Product Type: Switch – stackable
Enclosure Type: External – 1U
Localization: North America
Memory RAM: 256 MB
Flash Memory: 16 MB flash
Networking Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX
Auxiliary Network Ports: 4×10/100/1000Base-T/SFP (mini-GBIC)
Max Units In A Stack: 8
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Routing Protocol: RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
MAC Address Table Size: 16K entries
Status Indicators: Link activity, port transmission speed, power, link OK, Unit ID
Features: Layer 3 switching, layer 2 switching, auto-sensing per device, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, SNTP support, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v
Expansion Slots Total (Free): 4 ( 4 ) x SFP (mini-GBIC)
Interfaces: 4 x network – Ethernet 1000Base-T – RJ-45 24 x network / power – Ethernet 10Base-T/100Base-TX – RJ-45 1 x management – console – 9 pin D-Sub (DB-9)
Encryption Algorithm: SSL 3.0
Authentication Method: Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2)
Compliant Standards: CE, FCC Class A certified, C-Tick, cUL, VCCI Class A ITE, EN55024, EN55022 Class A, FCC Part 15, UL 60950-1, EN 60950-1
Power Over Ethernet (PoE): Yes
Power Device: Power supply – internal
Width: 17.3 in
Depth: 15.2 in
Height: 1.7 in
Weight: 8.4 lbs
