Description

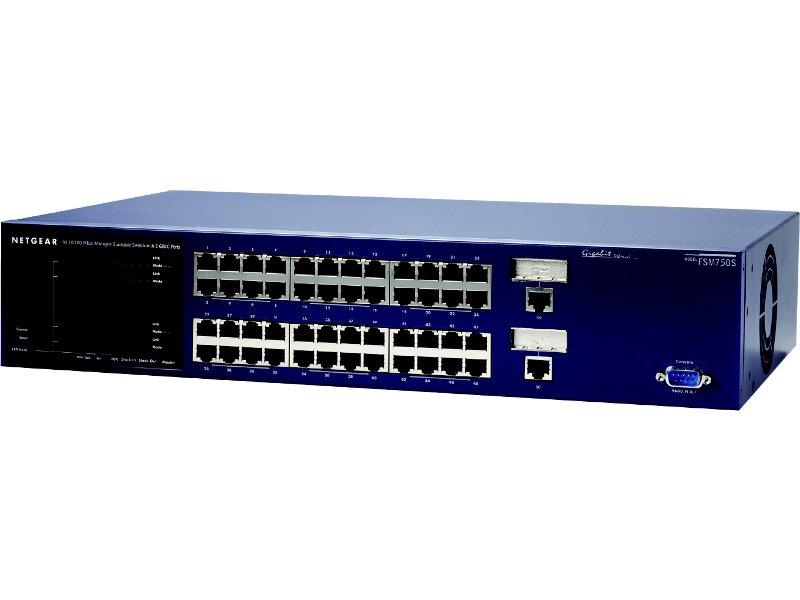

A 48-port version of NETGEAR’s popular FSM726S, the FSM750S non-blocking, Layer 2 Fast Ethernet Stackable Managed Switch makes it easy for your growing business to keep pace with an increasing workflow. It delivers high port density, flexibility, and ease of use for anyone new to managed switching. You get two interface options plus everything you need for stackable management. Built-in stacking ports provide simple, cost-effective stacking no stacking modules required. Built-in gigabit ports provide dedicated uplink connectivity without sacrificing stacking ports. And GBIC slots offer standards-based flexibility for maximizing uplink bandwidth.
Manufactured by: NETGEAR
Model/Part : FSM750S
Product Type: Switch – stackable
Enclosure Type: External – 2U
Installed Modules Qty (Max): 0 (installed) / 2 (max)
Networking Ports Qty: 48 x Ethernet 10Base-T, Ethernet 100Base-TX
Auxiliary Network Ports: 2×10/100/1000Base-T(uplink)
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Remote Management Protocol: SNMP, RMON, Telnet, HTTP
Connectivity Technology: Wired
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Status Indicators: Port status, link activity, collision status, port transmission speed, port duplex mode, power
Features: Flow control, DHCP support, auto-negotiation, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, stackable
Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Expansion Slots Total (Free): 2 ( 1 ) x expansion slot
Interfaces: 48 x network node – Ethernet 10Base-T/100Base-TX – RJ-45 2 x network host – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 1 x management – RS-232 – 9 pin D-Sub (DB-9) 2 x network stack device
Authentication Method: RADIUS
Compliant Standards: CE, FCC Class A certified, CSA, TUV, C-Tick, cUL, EN 60950, EN55022, UL 1950, VCCI Class A ITE
Power Device: Power supply
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 47 Watt
Width: 17.3 in
Depth: 10.2 in
Height: 3.4 in
Weight: 9.9 lbs
