Description
NETGEAR ProSafe Advanced Smart Switches provide small and mid-sized companies with a viable alternative to fully managed switches. This range of switches provides customers with all the features typically found in fully managed switches, without adding complexity or additional costs.
The ProSafe Gigabit Smart Switches with Static Routing deliver the scalability, flexibility, reliability, and performance growing small and medium-sized businesses need in an affordable and easy-to-manage package.
Each ProSafe Gigabit Smart Switch with Static Routing comes with 48 10/100/1000 ports with two or four shared SFP ports that provide high performance for bandwidth-intensive applications like ERP and large file transfers. In addition, these switches support 32 Static Routes to enable inter VLAN routing and manage bandwidth more effectively by managing broadcast storms, as well as tighter security. Finally, these switches come with a complete suite of advanced features for more robust security, higher quality of service and high availability. This switch is equipped with highly advanced features such as access control lists (ACL), 802.1x port authentication, enhanced QoS, rate limiting and IGMP snooping among others to provide a small and medium-sized business with a network that is geared for growth while providing scalability and reliability.
Manufactured by: NETGEAR

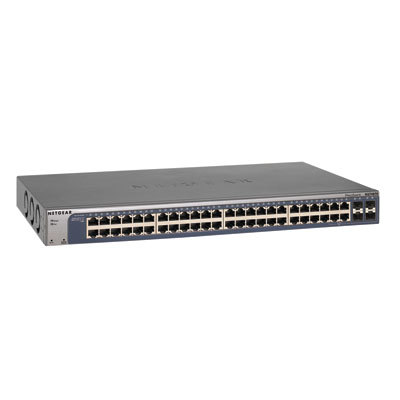

Model/Part : GS748TR
Product Type: Switch
Enclosure Type: External – 1U
Localization: North America
Memory RAM: 750 KB
Networking Ports Qty: 48 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Transfer Rate: 1 Gbps
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol: Static IP routing
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS
Connectivity Technology: Wired
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Status Indicators: Link activity, port transmission speed, power, link OK
Features: Flow control, auto-sensing per device, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, firmware upgradable, SNTP support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP)
Expansion Slots Total (Free): 4 ( 4 ) x SFP (mini-GBIC)
Interfaces: 48 x network – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45
Authentication Method: RADIUS, TACACS+
Compliant Standards: CE, C-Tick, CISPR 24, EN 60950, EN55022, VCCI Class A ITE, EN55024, CISPR 22, FCC Part 15 A
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50 – 60 Hz )
Power Consumption Operational: 71.2 Watt
Width: 17.3 in
Depth: 10.1 in
Height: 1.7 in
Weight: 9.3 lbs
