Description

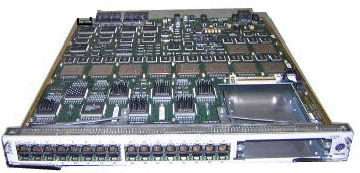

The Accelar 8132TX Edge Switch Module is a high-density switch module with 32 autosensing ports. These ports provide connection for network devices operating at 10 megabits per second (Mb/s) or 100 Mb/s. The Accelar 8132TX switch module installs in an Accelar 8000 Series chassis with other Accelar switching modules to create a switching system. Up to eight Accelar 8132TX switch modules can be installed in one Accelar 8010 Chassis; this configuration operates as a single switching entity with distributed management and no single point of failure.
Manufactured by: NORTEL
Model/Part #: DS1404006
Device Type Expansion module
Enclosure Type Plug-in module
Processor 1 x Motorola 68340
RAM 4 MB
Flash Memory 2 MB flash
Ports Qty 32 x Ethernet 10Base-T, Ethernet 100Base-TX
Data Transfer Rate 100 Mbps
Data Link Protocol Ethernet, Fast Ethernet
Remote Management Protocol SNMP
Connectivity Technology Wired
Communication Mode Half-duplex, full-duplex
Switching Protocol Ethernet
Status Indicators Port transmission speed, power, transmit, receive
Features Modular design, full duplex capability, manageable
Compliant Standards IEEE 802.3, IEEE 802.3u
Expansion Slots Total (Free) 1 ( 1
Interfaces 32 x network – Ethernet 10Base-T/100Base-TX – RJ-45 female – 32 1 x management – RS-232 – 8 pin mini-DIN female – 1
Compatible Slots 1
