Description

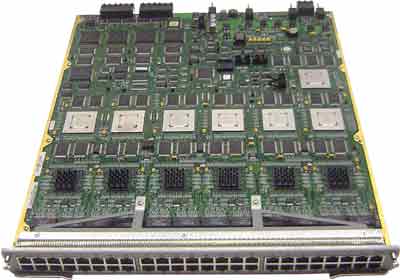

The Accelar 8000 edge switch modules support a distributed switching architecture that delivers 50 Gbps of switching capacity for high-performance application support today, scaling to 256 Gbps in future. This module is optimized for the highest density enterprise wiring closets, delivering cost-effective 10/100 desktop switching. In combination with the Accelar 8000 edge switch modules with MDA for riser connections, Accelar 1000 routing switches at the network core and Accelar 700 server switches for server farms, they provide an intelligent Ethernet solution for large, switched intranets. The 8148TX 48-port 10/100 edge switch module provides 48 auto-sensing 10/100 Mbps ports for desktop connectivity using RJ-45 connectors.
Manufactured by: NORTEL
Model/Part #: DS1404007
Device Type Switch
Enclosure Type Plug-in module
Processor 1 ( 1 ) x Motorola 68340
RAM 4 MB
Flash Memory 2 MB flash
Ports Qty 48 x Ethernet 10Base-T, Ethernet 1000Base-LX,
Ethernet 1000Base-SX, Ethernet 100Base-TX
Data Transfer Rate 100 Mbps
Data Link Protocol Ethernet, Fast Ethernet, Gigabit
Ethernet
Connectivity Technology Wired
Switching Protocol Ethernet
Status Indicators Link activity, port transmission speed, power
Features Modular design, uplink
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q
Interfaces 48 x network node – Ethernet 10Base-T/100Base-TX – RJ-45 female – 48 1 x network host – Ethernet 1000Base-SX – 1 1 x network host – Ethernet 1000Base-LX – 1
Compatible Slots 1
Weight 8.8 lbs
