Description

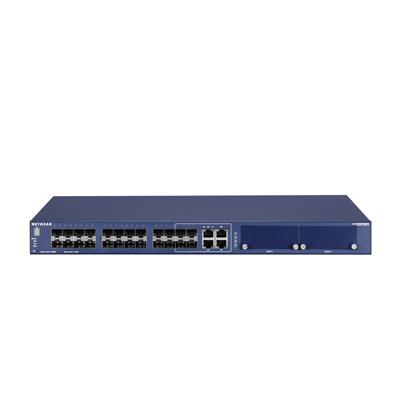

NETGEAR’s low-cost, stackable, Gigabit Ethernet switches deliver maximum throughput and flexibility where you need it – to high-speed, high-density workgroups at the edge of the network, in the backbone of growing networks or for bandwidth-thirsty file and application servers. For high-density fiber installations, the ProSafe GSM7328FS delivers 24 hot-swappable SFP Gigabit interfaces for fiber connectivity and 4 combo ports of auto-sensing 10/100/1000 Mbps interfaces for copper connectivity. The switch has four high-speed, module bays offering modular expansion for 10 Gigabit Ethernet or 24 Gigabit Stacking connectivity. The non-blocking design of the switches delivers simultaneous, full wire-speed, low-latency throughput to all ports.
A full suite of Layer 3 switching functionality ensures reliable routing between VLANs and network segmentation where and when you need it, at no additional cost. By configuring the switches into a stack of up to 8 units across a 48 Gbps bi-directional ring, a high-density, single IP-addressable switch can be built.
Manufactured by: NETGEAR
Model/Part : GSM7328FS
Product Type: Switch – stackable
Enclosure Type: External – 1U
Localization: North America
Flash Memory: 32 MB flash
Networking Ports Qty: 24 x Ethernet 1000Base-X
Auxiliary Network Ports: 4 x shared 10/100/1000Base-T
Max Units In A Stack: 8
Data Transfer Rate: 1 Gbps
Data Link Protocol: Gigabit Ethernet
Routing Protocol: OSPF, RIP-1, RIP-2, VRRP, OSPFv2
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
MAC Address Table Size: 16K entries
Status Indicators: Link activity, port transmission speed, power, link OK, status
Features: Flow control, layer 3 switching, auto-sensing per device, DHCP support, auto-negotiation, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control
Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v
Expansion Slots Total (Free): 24 ( 24 ) x SFP (mini-GBIC) 4 ( 4 ) x expansion slot
Interfaces: 4 x network – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 1 x management – console
Encryption Algorithm: TLS 1.0, SSL 3.0
Authentication Method: Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2)
Compliant Standards: CE, FCC Class A certified, C-Tick, CISPR 22 Class A, cUL, EN 60950, UL 1950, IEC 60950, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, FCC Part 15
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 78 Watt
Width: 17.3 in
Depth: 15.2 in
Height: 1.7 in
Weight: 11.9 lbs
